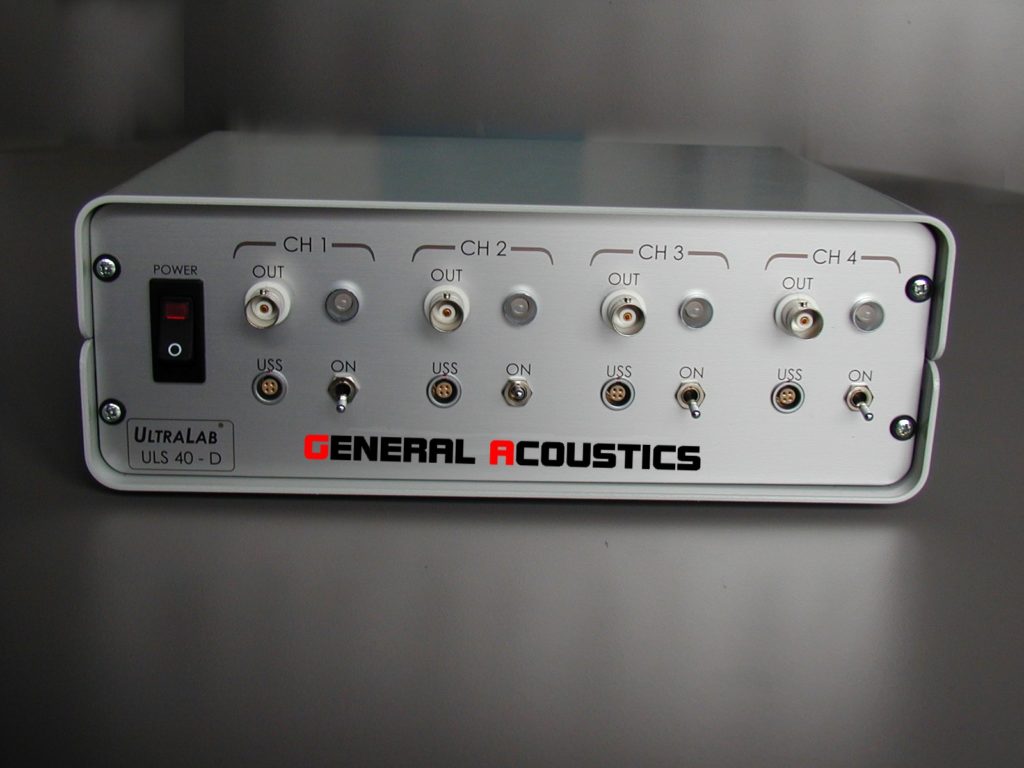

Ultralab ULS 40D

The UltraLab ULS 40D is a very easy and straightforward to use ultrasonic measuring system for laboratories, e.g. for basins, flumes, surface water models and towing tanks.

Because of its outstanding accuracy, the small beam angle of < 3° and its remote sensing technology almost all kinds of water dynamics (also steep waves) can be recorded without interferences.

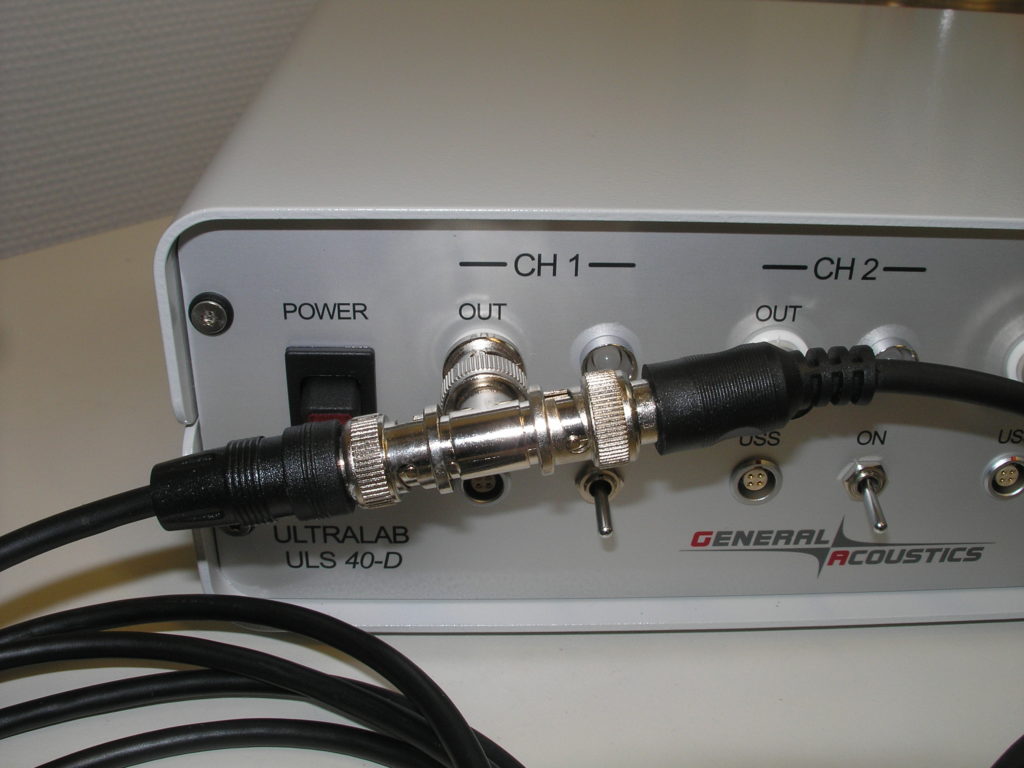

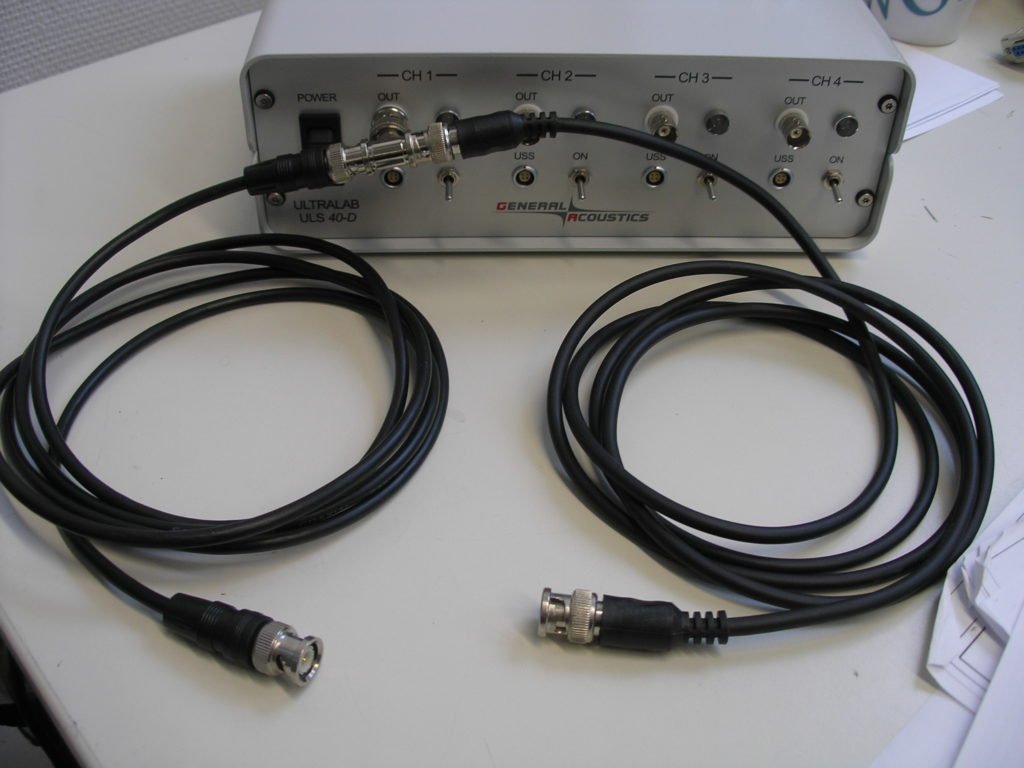

The UltraLab ULS 40D system comes with 4 independent channels. BNC voltage outputs (0-10V) make an integration into existing data acquisition systems very easy. The UltraLab ULS 40D is a plug & play system; it does not require calibration or maintenance.

  • • Enables the detection of the smallest and most rapid level changes                                                                                                                                                                                                                               • Measurement of relative velocities between sensor and wave of up to 2 m/s horizontally and 4 m/s vertically                                                                                                                                                  • Measurements close to or direct at objects/models                                                                                                                                                                                                                                                           • Easy integration into existing analog data acquisition systems
  • • 4 channels
    • BNC voltage output (0–10 V)
    • Optional Digital output and software module
  •  Specifications:
    Measurement channels: 4
    Measurement ranges:
    from 30 mm up to 3.4 m
    Resolution: up to 0,18 mm
    Sample rate: up to 75 Hz
    Output: Analogue 0-10 V
    Optional: Digital RS232 output

    • Various sensors measuring from 30 mm up to 3.4 m                                                                                                                                                                                                                                                        • Simultaneous usage of sensors with different measurement ranges
    • Superior resolution up to 0,18 mm
    • Repetition rate up to 75 Hz
    • Low operation effort

  • Optional Digital output and software module
  • • Optimisation of Ship Models
    • Measurements in Flood- and Water Surface Models
    • Optimisation of Hydraulic Constructions
    • Determination of Wave Parameters
    • Analysis of Wave Fields
    • Measurement of Object Contours                                                                                                                                                                                                                                                                                          • Steep, small and fast waves
    • Object contours (oil, ice, bodies, etc.)
    • Wave fi elds around a ship model
    • Wetted surfaces
    • Flood wave propagation
    • Water levels
