best in class resolution and sediment penetration


The SUBPRO1210 is a state-of-the-art high-frequency, high-power survey system, optimised for shallow waters allowing survey at depths as shallow as 1.5m. The sediment echosounder has high-resolution on sediment penetration. It´s typical seabed penetration is up to 10m in sand.

  • For a portable Sub Bottom Profiler, suitable for AVS (small vessel) operation and ultra shallow water survey, please see: SUBPRO2545
    • high-resolution sub bottom profiler.

      • Complete Stand-Alone System and Easy System Integration
      • Suitable for a Wide Range of Survey Tasks
      • Shallow Water Surveying starting at 1.5 m
      • Typical Seabed Penetration up to 10 m (in Sand)
      • Highest Detection Probability of Objects and Layers
      • Real-Time Zoom and Re-Processing
      • Very high dynamic range and SNR
      • Advanced signal processing and advanced gain functions
      • Fulfils most sub-bottom surveying tasks in only one system
      • Typical Seabed Penetration up to 10m in sand
      • Highest Detection Probability of objects and layers
      • Real-Time Zoom and re-processing of RAW data
      • Shallow Water Surveying starting at 1.5m

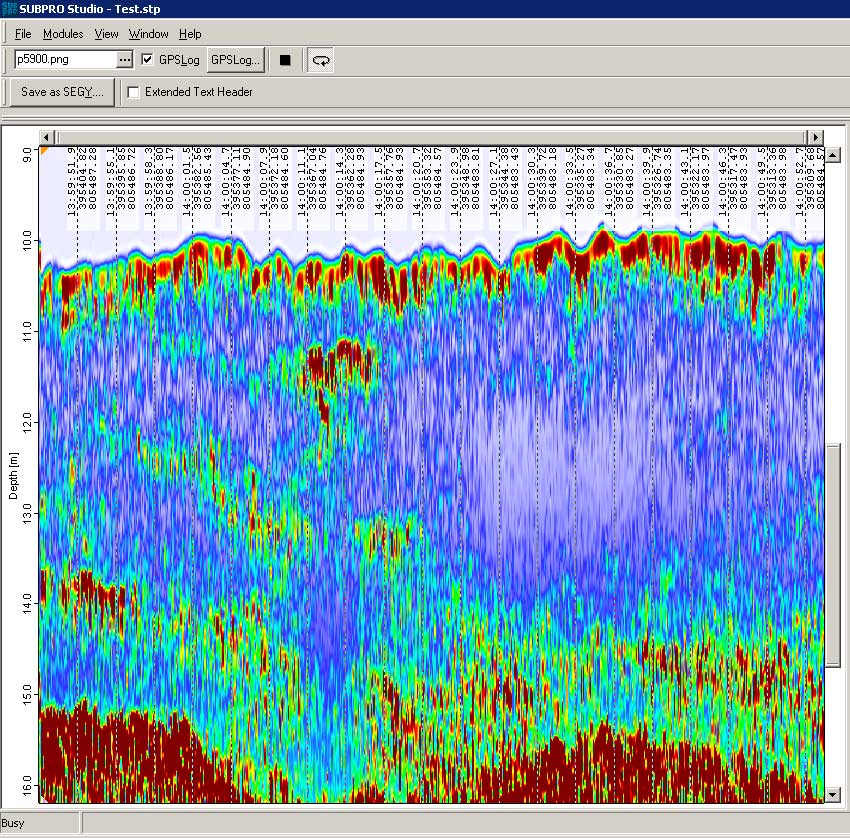

      • Easy to use WINDOWS software SUBPRO Studio for operation and re-processing
      • Complete stand-alone system and easy system integration
      • Simultaneous sub-bottom and hydrographic results
      • Effective thanks to multiple results from the same dataset and to superior results per ping ratio
      • No result interpretation with customized processing modules

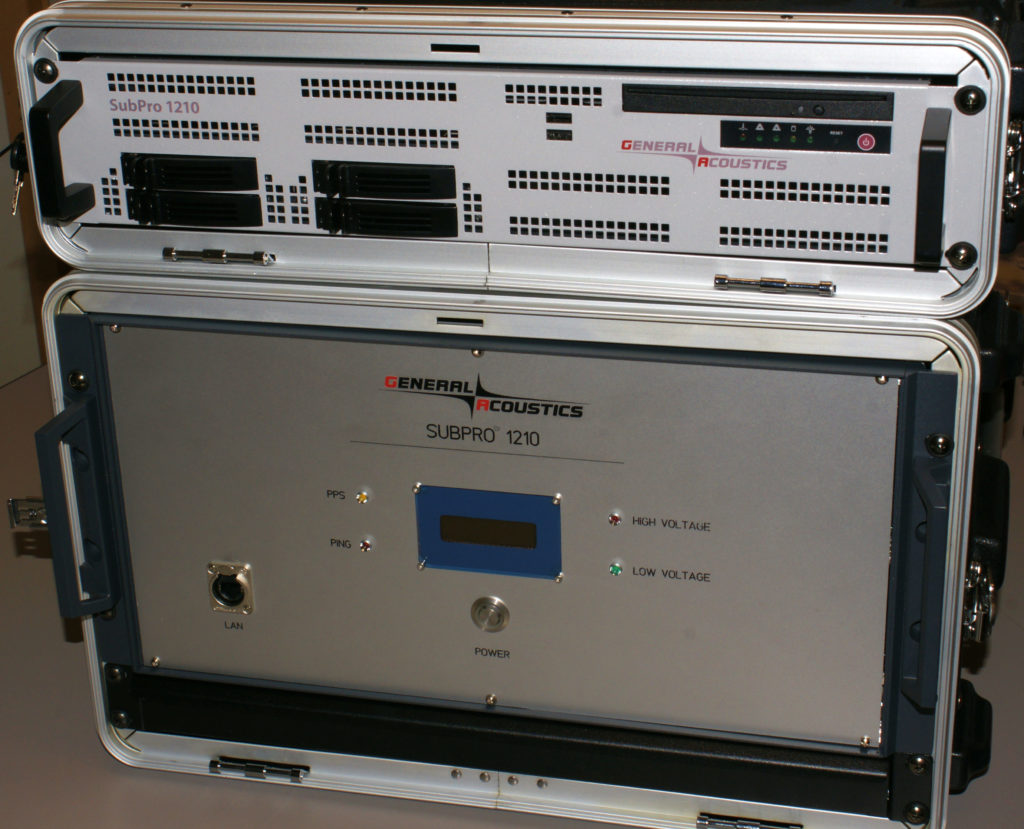

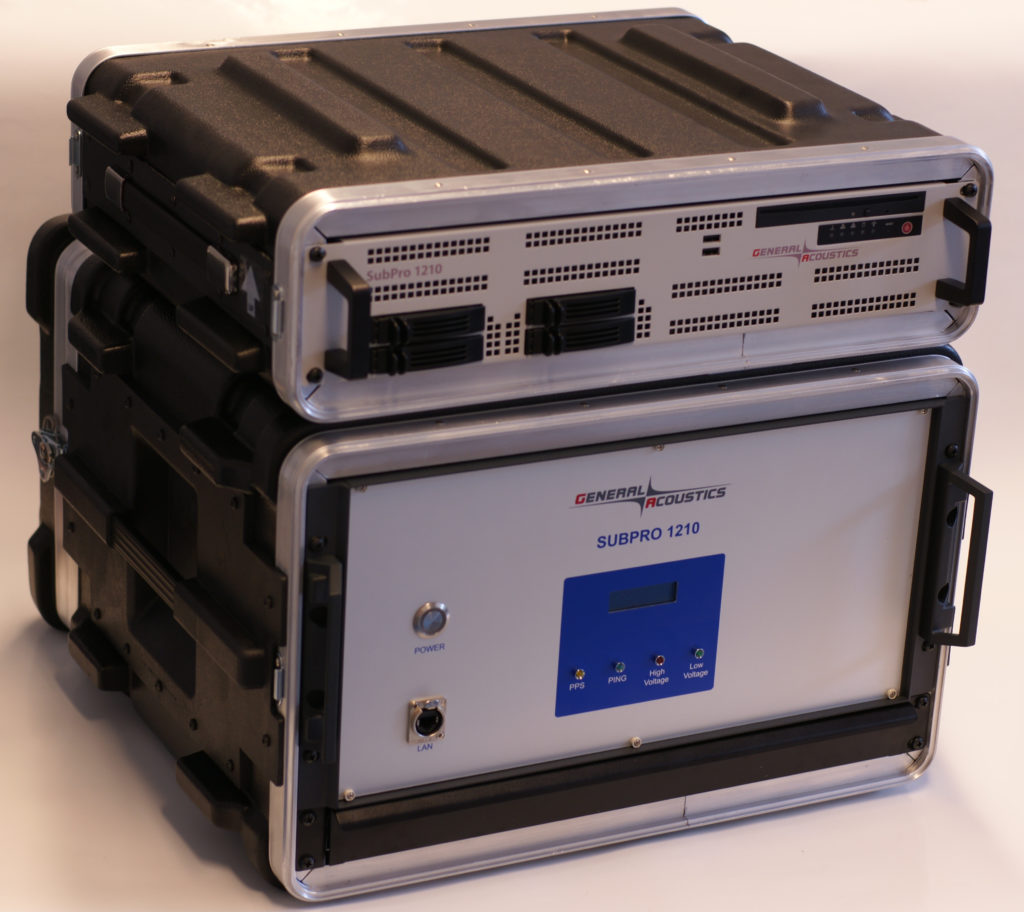

    • SUBPRO 1210 consists of a controller unit and a high-performance PC in 19” housings. The complete system incorporates the controller for triggering, transmitting, receiving, amplifying and processing of signals, analysis unit, pps-module for time synchronization and power supply.
      The PC unit includes the storage of raw files, results and project files, TFT monitor and easy to handle WINDOWS® software SUBPRO Studio for re-/post-processing and export of data.
    • Specifications
      Type Piezo Electric
      Maximum Power Output Up to 10 KW peak
      Transducer Beam width 10°
      Frequency 12 kHz / 25-45 kHz wideband
      Max Firing /Repetition Rate 20 Hz
      Pulse length max & min 200 µs – 1 ms
      Resolution 1 mm
      Typical penetration up to 10m in Sand >10m in soft sediments
      Input and Output
      Hard Copy Printer Supported – Windows printer
      Output formats – SEG-Y, XTF (optional), Ethernet, Printer, DVD-R
        – Ethernet, CD-R/DVD-R
      Input devices – pps time (NMEA) for HRP adjustment
      – GPS (NMEA)
      – Heave, Pitch, Roll (optional)
      Data Storage – Saving of high resolution RAW data and
      project data
      – Post processing on RAW data possible via
      Weight in Air – 35/30 kg
      Size – Ø 380 mm , 165 mm high
      Depth rating – 500 m
      Mounting – Hull mounted, Over-the-side mounted
      Controller Specs and PC Unit
      SNR and Dynamic range – > 160 dB
      Weight in Air of surface equipment – 25 kg
      Size H/W/L – 19″ Rack, 50 x 50 x30 cm
      Power Supply – 110 VAC / 230 VAC
      Weight in Air of surface equipment – 30 kg
      Technical internal resolution 24 bit / 1 mm
      High Performance Quad-Core PC 19″ Rack, 50 x 50 x 25 cm, 20 kg
      Transmit Power up to 10/4 kW peak

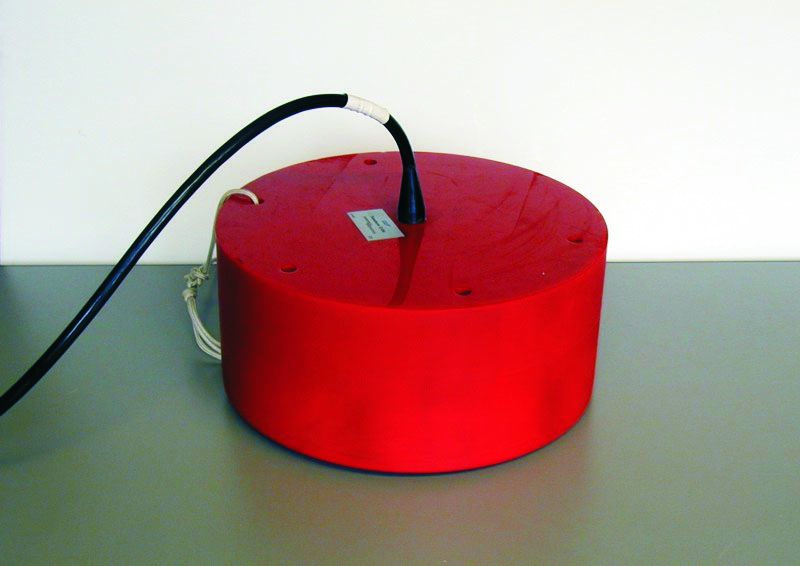

    • Transducers: 12 kHz (standard) / 25-45 kHz wideband (optional) / transducer arrays and custom systems for specific applications.
      • subsoil exploration
      • (Buried) pipeline, cable and object detection
      • Offshore hazard surveys
      • Dredge, mining and dump monitoring
      • Very shallow water surveys
      • High-sediment load surveys
      • Volume determination (e.g.for sand reclamation)
      • Scour detection and monitoring
      • Environmental surveys
      • Archaeological surveys
      • Sediment transport investigations
      • Sediment monitoring for jack-up deployment
      • Validation and extension of hydrographic surveys at soft sediments and highly concentrated suspensions
      • Sediment density profiling
